Console Connections
Local 1
Computer Connections
Direct 32
Maximum 512 (via Cascade)
Port Selection Pushbuttons, Hotkeys, GUI

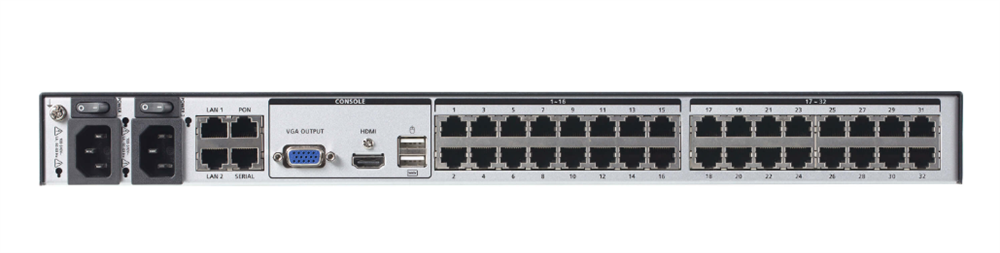

Connectors
Console Ports 2 x USB Type-A Female (White)
USB Port 3 x USB Type-A Female
Audio 2 x Audio Jack Female
Laptop USB Console (LUC) Port 1 x USB Mini-B Female
KVM Ports 32 x RJ-45 Female
LAN Ports 2 x RJ-45 Female
Switches
Port Selection 2 x Pushbuttons
Reset 1 x Semi-recessed Pushbutton
Power 2 x Rocker Switches
LEDs
Online / Selected 32 (Green/Orange)
Link 10 / 100 / 1000 Mbps 2 (Red/Orange/Green)
Emulation
Keyboard / Mouse PS/2; USB
Video
Local 1920 x 1200 @ 60Hz
Remote 1920 x 1200 @ 60Hz
Scan Interval
1 – 255 Sec
Maximum Input Power Rating
100–240V~ ; 50-60Hz; 1A
Power Consumption
AC110V:34.6W:216BTU/h
Environmental
Operating Temperature 0 - 40˚C
Storage Temperature -20 - 60˚C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 5.21 kg ( 11.48 lb )
Dimensions (L x W x H) 43.36 x 41.21 x 4.40 cm
