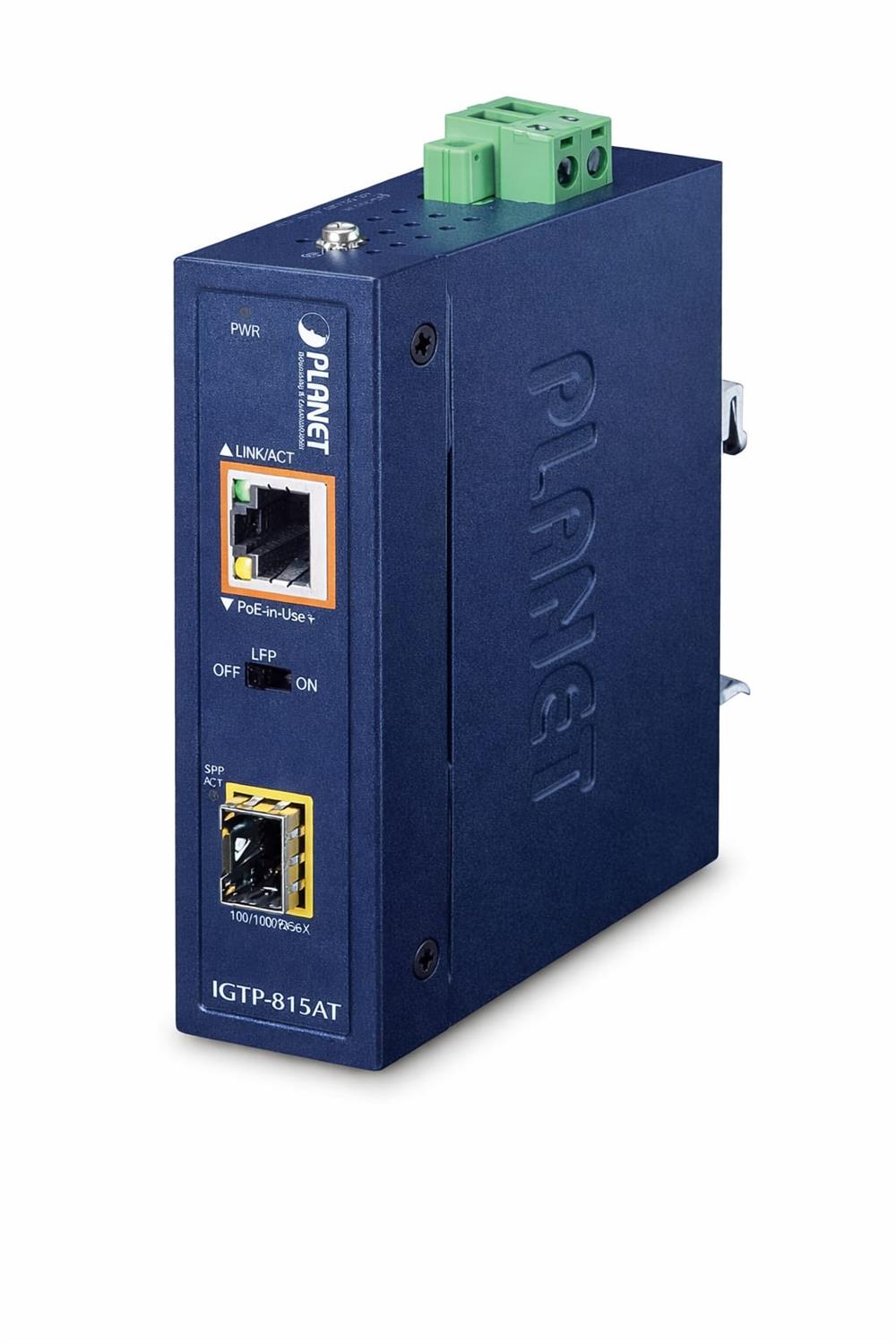

Hardware Specifications
Copper Port 10/100/1000BASE-T Ethernet TP interface. Maximum 100m distance
Auto-negotiation, auto MDI/MDI-X with PoE injector function
SFP Slot 1000BASE-SX/LX/BX SFP interface
Compatible with 100BASE-FX SFP
Flow Control Back pressure for half duplex mode
IEEE 802.3x pause frame for full duplex mode
LED System: Power (Green)
Fiber 100/1000BASE-X: LNK/ACT (Green)
TP 10/100/1000BASE-T: LNK/ACT (Green)
PoE: Power-in-use (Amber)
Dimensions (W x D x H) 30 x 70 x 104 mm
Power Requirements DC 48~56V, supports reverse polarity protection
(>51V DC for PoE+ output recommended)
Power Consumption System ON without loading
DC 48V:35W/119BTU(PoE:30W)
DC 56V:42W/143BTU(PoE: 36W)
DIP Switch Off: LFP (Link Fault Passthrough) disable
On: LFP (Link Fault Passthrough) enable
FEF (Far End Fault) works with LFP to prevent data loss
The DIP switch is turned off by default
Enclosure IP30 metal case
Installation DIN-rail kit and wall-mount ear
Cables 10/100/1000BASE-T:
2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters)
EIA / TIA-568 100-ohm STP (maximum 100 meters)
100BASE-FX/1000BASE-SX/LX:
Multi-mode: 50/125μm or 62.5/125μm optical fiber
Single-mode: 9/125μm optical fiber
PoE Standard IEEE 802.3at Power over Ethernet Plus
PoE Power Output 48~56V DC: 36 watts max.
PoE Power Supply Type End-span
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 36 watts
Regulatory Compliance FCC Part 15 Class A, CE
Protocols and Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet over Fiber Optic
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
Stability Testing IEC60068-2-32 (free fall)
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~85 degrees C
Humidity Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)
