Technical Information
Connectivity Technology- Wired
Number of Displays Supported- 4
Host PC Management-
* MAC address pass-through
* PXE Boot
* Dock Power Button Sync
* Wake-On-LAN
* WLAN to LAN switch
* Kernel Direct Memory Access (DMA) protection
Dock Management Features-
* Host PC based firmware update
* Firmware update on disconnect
* Port Disablement
Device Supported-
* Notebook
Video Resolution
DP1.4 with Display Stream Compression-
* 4 x WQHD (3440 x 1440) @ 60Hz
* 3 x WQHD (3440 x 1440) @ 60Hz
* 2 x 5K (5120 x 2160) @ 60Hz
* 1 x 6K (6144 x 3456) @ 60Hz
DP1.4 without Display Stream Compression-
* Up to:
* 4 x HD (1280x720) @ 60Hz
* 3 x FHD (1920x1080) @ 60Hz
* 2 x QHD (2560x1440) @ 60Hz
* 1 x 4K (3840 x 2160) @ 60Hz
Network & Communication
Ethernet Technology-
* RJ45 Ethernet port, 2.5GbE
*

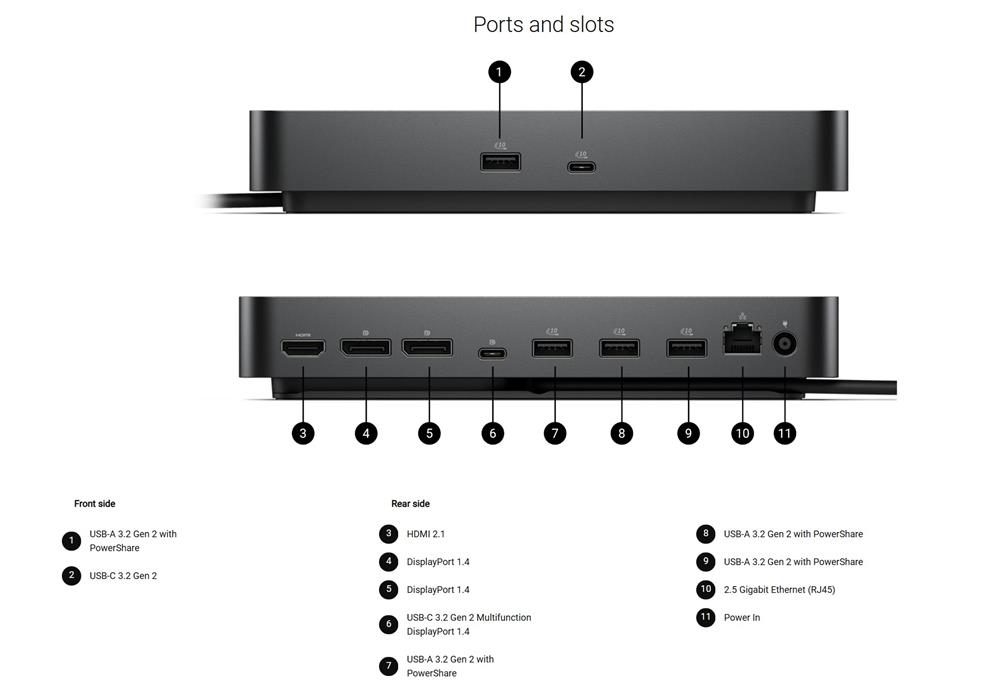

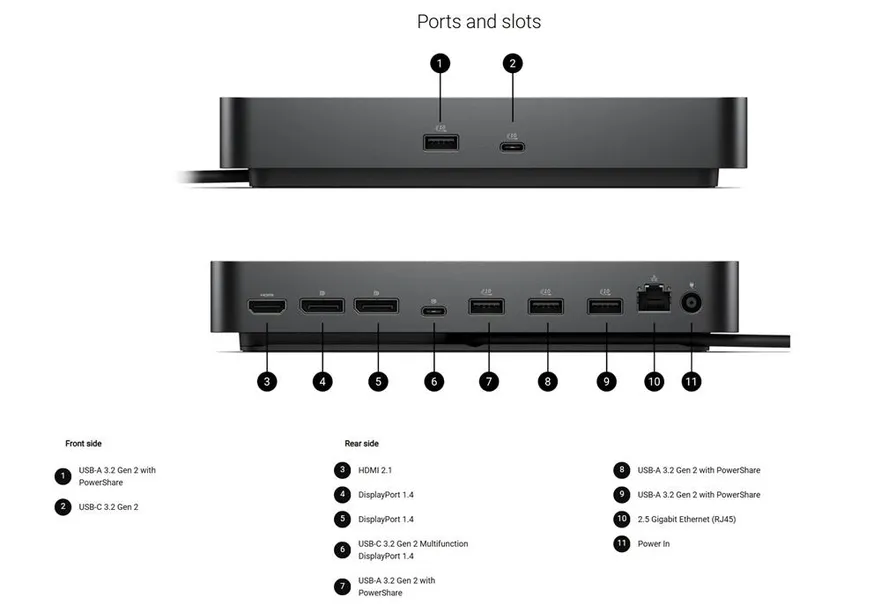

Interfaces/Ports
Interfaces-
* Video interfaces
* 2 x DP1.4
* 1 x HDMI 2.1
* 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4
USB Ports (Data Only)-
* 4 x USB-A 3.2 Gen 2 (10 Gbps)
* 1 x USB-C 3.2 Gen 2 (10 Gbps)
USB Power Delivery-
* 100W (Dell systems)
* 96W (non-Dell systems)
USB Ports (Power)-
* 4 x USB-A 3.2 Gen 2 (4.5W each)
* 1 x USB-C 3.2 Gen 2 (15W)
* 1 x USB-C Multi-function DisplayPort (7.5W)
* All deliver power with or without PC
Software
Operating System Supported-
* Windows 10
* Windows 11
* Ubuntu
* Red Hat Enterprise Linux
* ChromeOS
Power Description
Maximum Power Supply Wattage- 130W
Physical Characteristics
Height- 205mm
Weight (Approximate)- 550 g
Miscellaneous
Package Contents-
* Docking Station
* Power Adapter and Power Cord
* Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)
Kensington Security Slot- Yes
